Hinged Fire Door
Single and double leaf options for rated openings.
Fire Doors
Certified protection you can count on
Fire Doors
Certified Fire-Rated Door Solutions
Brightwater Joinery provides certified fire door solutions for projects where passive fire protection, documentation, and installation coordination matter. Fire doors are specified as complete doorsets, so the leaf, frame, seals, hardware, glazing, signage, and installation pathway all need to align with the required fire resistance rating (FRR).
Trusted Fire Door Specialists
As Nelson's trusted fire door specialists, we combine technical understanding with practical project support. We help coordinate the right certified doorset package for the required rating, opening type, hardware brief, and project documentation.
- Hinged single and double leaf fire doors
- Double-action pivot doors up to 120-minute FRR
- Fire-rated sliding door systems
- Fire-rated side lights and over panels
- Integrated fire windows
- Timber and steel frame options
- Complete certified doorset solutions
Fire Door Product Range
Choose from our comprehensive selection of certified fire door solutions designed to meet your specific project requirements.
Up to 240 min FRR

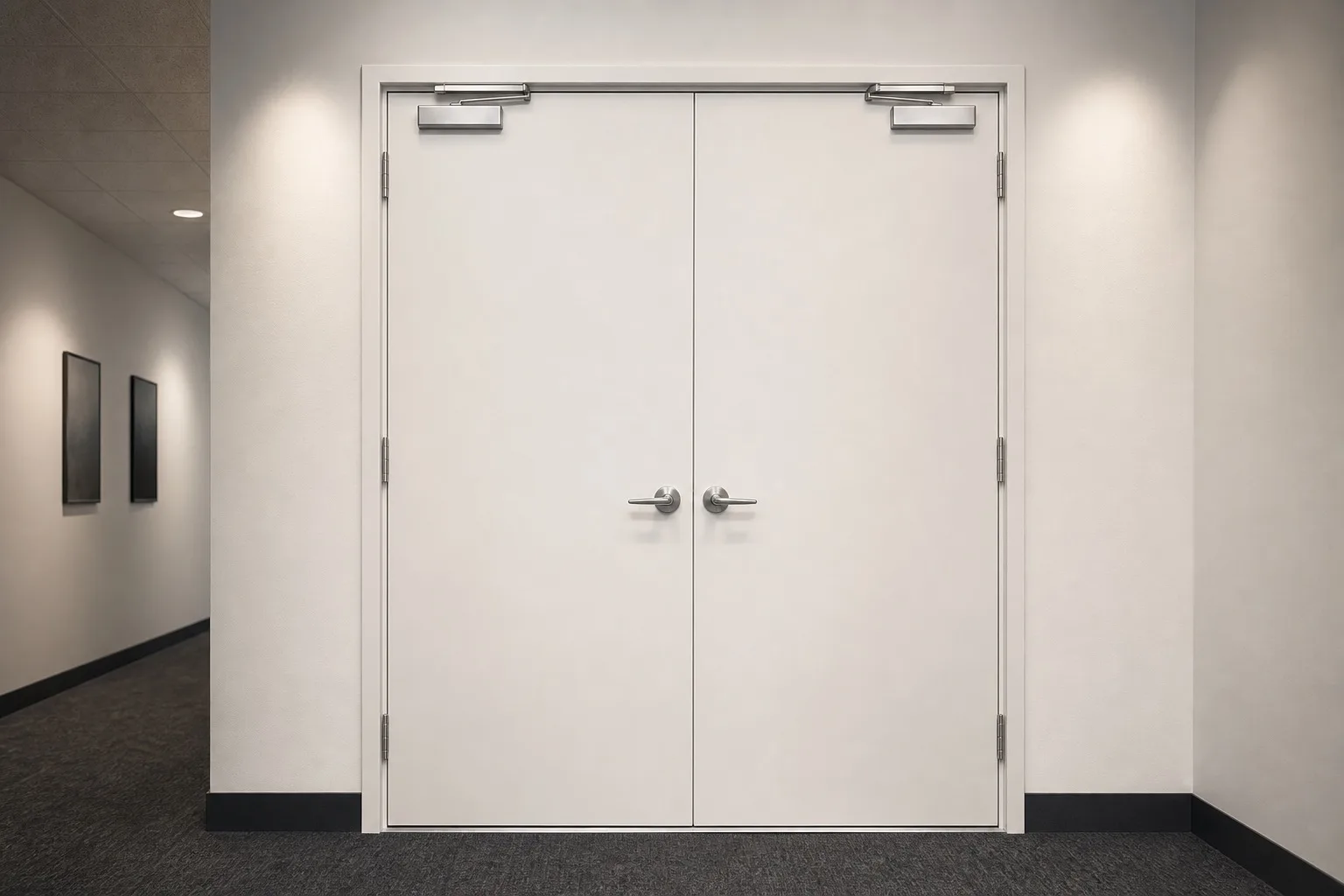

Hinged Fire Doors
Single and double leaf configurations available. Our hinged fire doors combine certified fire protection with elegant design, suitable for a wide range of commercial and residential applications.
View specifications
Up to 120 min FRR

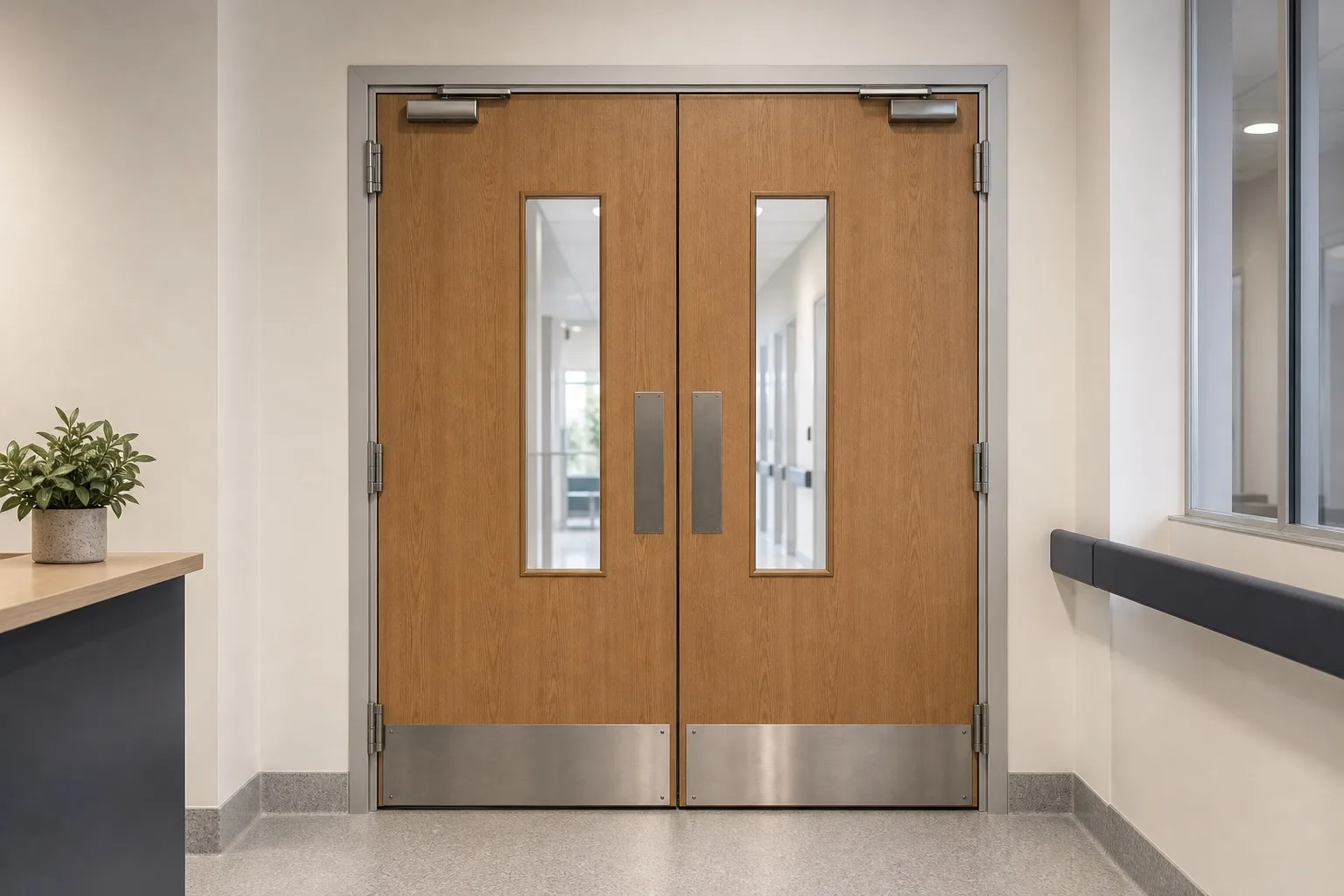

Double-Action Fire Doors
Pivot door systems engineered for high-traffic areas. These doors automatically return to closed position and are certified to maintain fire integrity while accommodating user accessibility.
View specifications
Certified FRR

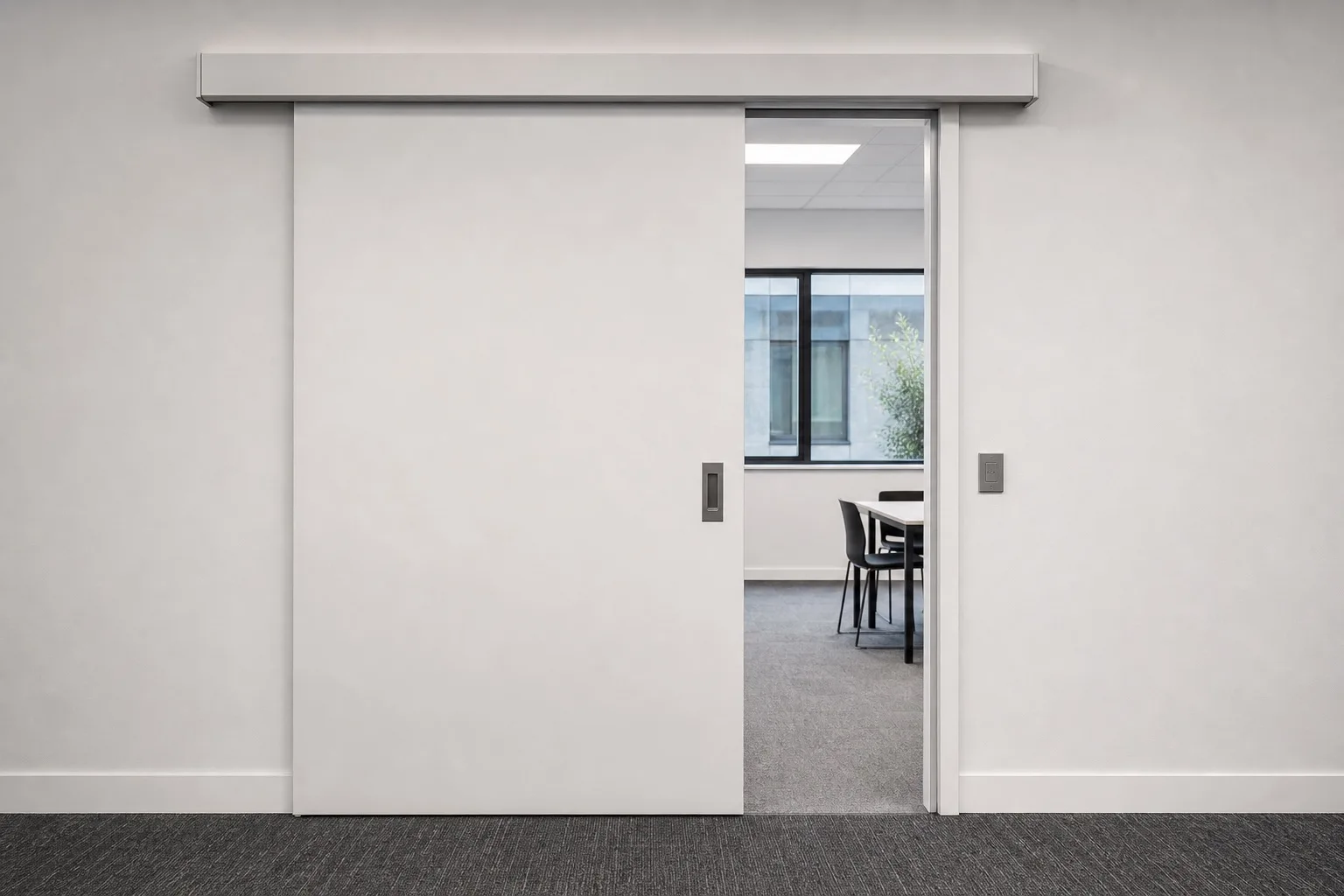

Fire-Rated Sliding Doors
Modern sliding door systems with certified fire protection. Perfect for space-constrained applications, these doors provide seamless operation while maintaining full fire compartmentalization.
View specifications
Smoke Control
Smoke Doors
Specialized doors designed to control smoke movement and maintain indoor air quality. Available with seals and hardware specifically engineered for smoke mitigation requirements.
View specificationsGallery
Fire Door Variations
Fire door options can vary by opening type, rating, visibility, hardware, frame, and smoke-control requirements.
Vision Panel Option
Visibility can be coordinated where compatible with the certified doorset.
Double-Action Door
Useful for higher-traffic areas where the selected system allows.
Fire-Rated Slider
Specialist sliding options for compatible fire-rated applications.
What to Coordinate Before Ordering
Fire door performance depends on the complete doorset and how it is installed, labelled, used, inspected, and maintained. Early coordination helps avoid late changes that can affect compliance or delay site work.
Rating & Location
Confirm the required FRR, wall type, direction of escape, smoke-control needs, and whether the opening sits in a corridor, stair, compartment boundary, or service area.
Door Set Components
Frames, seals, closers, hinges, latches, vision panels, side lights, over panels, signage, and access-control hardware must be compatible with the selected certified solution.
Documentation & Handover
Fire doors usually need clear documentation for the builder, installer, building consent process, and ongoing inspection or maintenance records.
Fire Resistance Ratings & Specifications
Our complete certified doorsets are available in multiple fire resistance ratings to suit different building codes and project requirements.
| FRR Rating | Suitable Applications | Frame Options | Certification |
|---|---|---|---|
| 30 Minute | General commercial corridors, office partitions | Timber or steel jamb | Certified doorset |
| 60 Minute | Stairwells, fire compartment boundaries | Timber (up to 60min) or steel | Certified doorset |
| 120 Minute | High-risk areas, critical compartments | Steel frame required | Complete certified doorset |
| 240 Minute | Extreme protection applications | Steel frame required | Complete certified doorset solution |
Typical doorset coordination includes: Certified leaf, compatible frame, approved hinges, seals, latch or closer requirements, and installation hardware to suit the selected system.
Technical Resources
Request our technical documentation and installation guides to support your specification and installation process.
Fire Door FAQs
Useful guidance for project teams planning certified doorsets.
Is a fire-rated door leaf enough on its own?
No. Fire performance depends on the complete certified doorset, including the door leaf, frame, seals, hinges, closer, and any related hardware.
Can fire doors include vision panels or side lights?
Yes, depending on the selected doorset solution and certification pathway. These features need to be coordinated as part of the overall fire door specification.
When should fire doors be discussed in a project?
As early as possible. Early coordination helps align rating requirements, frame type, hardware, access needs, and installation planning.
Can Brightwater Joinery help with technical documentation requests?
Yes. The team can help with requests for data sheets, order forms, installation guidance, and related technical information.
